• Compliant with ISO 17712:2013 as high security seal
• The peel-off sticker is made of paper with thermal transfer ribbon printed for an accurate number transfer
• Tensile strength: >1000 kg
• Working temperature: -40°c +80°c

TECHNICAL DESIGN

SIZE
Length: 82 mm
Diam (head): 21 mm
Diam (pin): 8 mm; 9.7 mm; 11 mm

MATERIAL
Carbon steel pin and polystyrene/ABS coated locking body

AVAILABLE COLORS
Available colours: white, yellow, red and green
Further colours as pink, grey and brown can be manufactured upon request.

SEQUENTIAL NUMBERING AND CUSTOMISATION
– Marking: laser
– Progressive numbering up to 15 digits
– Customisation up to 20 characters on one line
– Logo, barcode and data matrix upon request

PACKAGING
Box with 200 seals
Box size: 49x31x13cm

The post Bolt Lock High Security Seal With Peel-off Sticker CERBERUS SEAL appeared first on LeghornGroup India.

Bolt seal EOS, UHF RFID seal is a passive radio frequency device that transmits container identification code and information when interrogated by UHF RFID static gateway reader or handheld RFID reader devices. It combines the mechanical security of standard seals with the electronic security offered by RFID.
It has univocal ID code and read/write user memory capabilities.

To protect goods and prevent their theft and tampering, EOS UHF RFID seal locks containers, trucks and trailers, enabling speed up gate-in / gate-out operations in terminals, hubs, and ports.

Compliant with CBIC GUIDELINES (Circulars No. 26/2017, 36/2017, 37/2017-Customs), the EOS seal is UHF RFID tamper-proof one-time bolt seal bearing a unique serial number and brand of the vendors in the prescribed format.

Moreover, it complies with the international technical specification of High-security Seal as per ISO 17712:2013 (H). At the same time, the RFID communication protocol complies with the international ISO/ IEC 18000-6 Class 1 Gen 2 standard for use with UHF (860 MHz to 960 MHz) reader scanners.

EOS UHF RFID seal is a Customs Approved e-seal suitable for use for self-sealing of export containers.

TECHNICAL DRAW

TECHNICAL SPECIFICATION

Radio Frequency specification
Frequency ………………………………………860 – 960 MHz – UHF EPC Global
Reference RF Standard ……………………….ISO/IEC 18000-63
RF Protocol ……………………………………..EPC Class 1 Gen2 / ISO/IEC 18000-63
Technology ………………………………………Passive

RFID Chip: ………………………………………Alien Technology, USA

Mechanical specification
IP Protection ………………………………….IP66
Operative Temperature ……………………..– 30°C / + 80 °C
Storage Temperature ……………………… – 30°C / + 80 °C
ISO 17712:2013 …………………………… Yes

Metal anti-spin design

Electronic specification
Reading distance handheld reader ……… 10 cm (depending on the reader)
Quality ……………………………………… 100% RFID performance tested
TID (tag unique identification) …………… Yes
S/N in memory (same of seal) ……….….. Yes
Data retention ……………………………  20 year
Integration with handheld reader ………… commercial reader, OS ANDROID
Integration with gate reader ………………  commercial industrial reader

SIZE
Pin diameter:  12 mm
Metal pin diameter 9 mm
Pin length: 80 mm
Bolt length: 68 mm
Bolt-head diameter: 24 mm

MATERIAL
ABS + CARBON STEEL

COLOURS & CUSTOMIZATIONS
Colours: red, green, yellow, light blu, white
Marking & Customisation: Laser engraving, Body: Logo, numbering, barcode or QR code.  Shaft: consecutive numbering. Space for 7 digits and 14 letters.

PACKAGING
200 pcs/ box
Box size: 460 x 390 x 305 mm
Gross weight: 17 kgs

The post RFID Bolt Seal EOS SEAL appeared first on LeghornGroup India.

It’s the first RFID cable seal – compliant with ISO17712 technical standards – available on the market that is able to provide its status information, UNLOCKED,  LOCKED or TAMPERED,  which is stored in the RFID chip. For this reason, the product has been named “three-state“.

The outer polypropylene plastic housing of the seal – customizable with mark and numbering on request – embeds an unique and latest generation of electronic chip, that has its own univocal coding, which cannot be replicated.

This allows for secure and reliable automatic identification of the seal applied to the container or vehicle.

TECHNICAL DRAWING

MYRMIDON SEAL

• Has univocal ID code and read/write user memory capabilities.
• It offers at the same time the immediate and accurate seal identification and the status of the seal i.e. unlocked/locked and evidence of tamper occurred, if any.
• It is an ideal solution for guaranteeing cargo security and tamper evidence along the shipping and supply chain.
• The cable lock system makes its use easy in a variety of different applications.

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

Radio Frequency specification

• Frequency: 860 – 960 MHz
• Reference RF Standard: EPC Class 1 Gen2 / ISO/IEC 18000-6C
• Technology: Passive
• RFID IC: NXP G2iM+
• User read / write memory: up to 640 bit
• Memory size: from128 bit up to 448 bit of EPC memory
• TID (Tag IDentifier): 96 bit, including 48-bit of univocal    progressive numbering factory locked; 112 bit user TID memory
• Password protected: yes
• Tamper detection: yes – THREE STATES DETECTION
• Read/Write cycle: 10000
• Data retention: 20 years

Performance

• Reading distance by handheld reader: 2 m (depending on reader)
• Reading distance at gate reader: 5 m (depending on reader)
• Quality: 100% performance tested)

Mechanical specification

• IP Protection: IP65
• Operating temperature: – 20°C / + 55°C
• Storage temperature: – 30°C / + 80°C
• ISO 17712:2013 Clauses 5 and 6: yes

Size

• Size: 51×93×34 mm
• Cable standard length: 337 mm
• Cable diameter: 5,0 mm
• Weight: 160 g
• Material: carbonitrured steel + polypropylene in accordance with Restriction of Hazardous Substances (RoHS), European Directive 2002/EC.

The post Cable lock UHF RFID three-state e-seal MYRMIDON SEAL appeared first on LeghornGroup India.

It’s the first RFID bolt seal – compliant with ISO 17712 technical standards – available on the market that is able to provide its status information, UNLOCKED,  LOCKED OR TAMPERED, which is stored in the RFID chip. For this reason, the product has been named “three-state“.

The outer polypropylene plastic housing of the seal – customizable with mark and numbering on request – embeds an unique and latest generation of electronic chip, that has its own univocal coding, which cannot be replicated.

This allows for secure and reliable automatic identification of the seal applied to the container or vehicle.

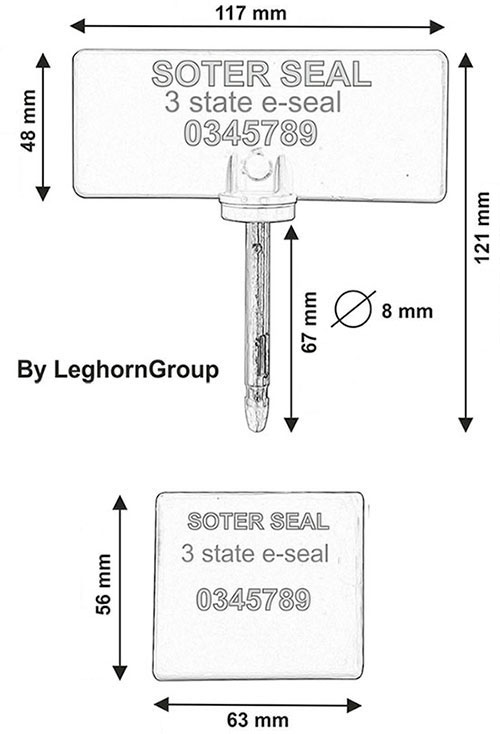

TECHNICAL DRAWING

SOTER SEAL

• Has univocal ID code and read/write user memory capabilities.
• It offers at the same time the immediate and accurate seal identification and the status of the seal i.e. unlocked/locked and evidence of tamper occurred, if any.
• It is an ideal solution for guaranteeing cargo security and tamper evidence along the shipping and supply chain.

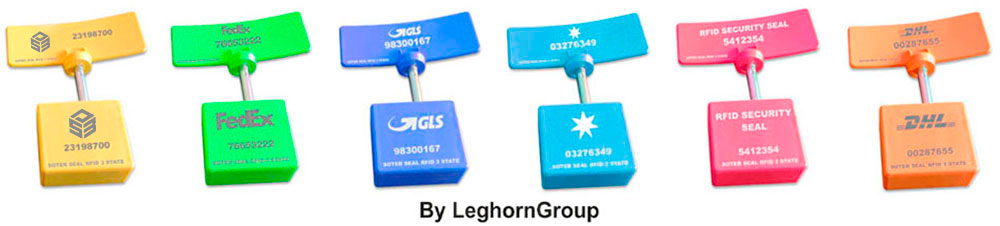

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

RADIO FREQUENCY SPECIFICATION

• Frequency: 860 – 960 MHz
• Reference RF Standard: EPC Class 1 Gen2 / ISO/IEC 18000-6C
• Technology: Passive
• RFID IC: NXP G2iM+
• User read / write memory: up to 640 bit
• Memory size: from128 bit up to 448 bit of EPC memory
• TID (Tag IDentifier): 96 bit, including 48-bit of univocal progressive numbering factory locked; 112 bit user TID memory
• Password protected: yes
• Tamper detection: yes – THREE STATES DETECTION
• Read/Write cycle: 10000
• Data retention: 20 years

PERFORMANCE

• Reading distance by handheld reader: 2 m (depending on reader)
• Reading distance at gate reader: 5 m (depending on reader)
• Quality: 100% performance tested)

MECHANICAL SPECIFICATION

• IP Protection: IP65
• Operating temperature: – 20°C / + 55°C
• Storage temperature: – 30°C / + 80°C
• ISO 17712:2013 Clauses 4, 5 and 6: yes
• Material: carbonitrured steel + polypropylene in accordance with Restriction of Hazardous Substances (RoHS), European Directive 2002/EC.

SIZE

• Electronic flag: 48×117×4 mm
• Metallic pin length: 67 mm
• Metallic pin diameter: 8 mm
• Bolt size: 56×63×26 mm
• Weight: 114 g

The post Bolt lock UHF RFID three-state e-seal SOTER SEAL appeared first on LeghornGroup India.

CABLE SEAL 4×250 mm has the body completely made in anodised aluminium (*) and a steel cable comes out of it.

Once inserted the opposite end of the cable into the hole, and pulled it to the maximum possible extent, there will be no way to open the seal unless by breaking it with good shears.

Specifically CABLE SEAL 4×250 mm is suitable to meet security requirements in container shipping or rail transport.

This is a High Security Seal compliant with requirements impose by ISO 17712:2013.

(*) Anodising is a non- spontaneous electrochemical process by which a protective oxide layer forms on the surface of the treated metal and protects it from corrosion.

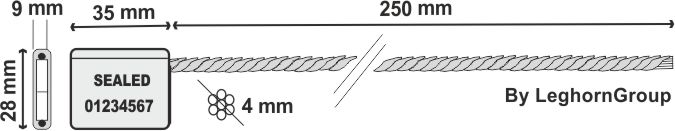

TECHNICAL DRAWING

SIZE
Diameter: 4 mm
Length: 250 mm
Different size available on demand.

MATERIAL
The body: painted aluminium
Cable: steel wire – different diameters

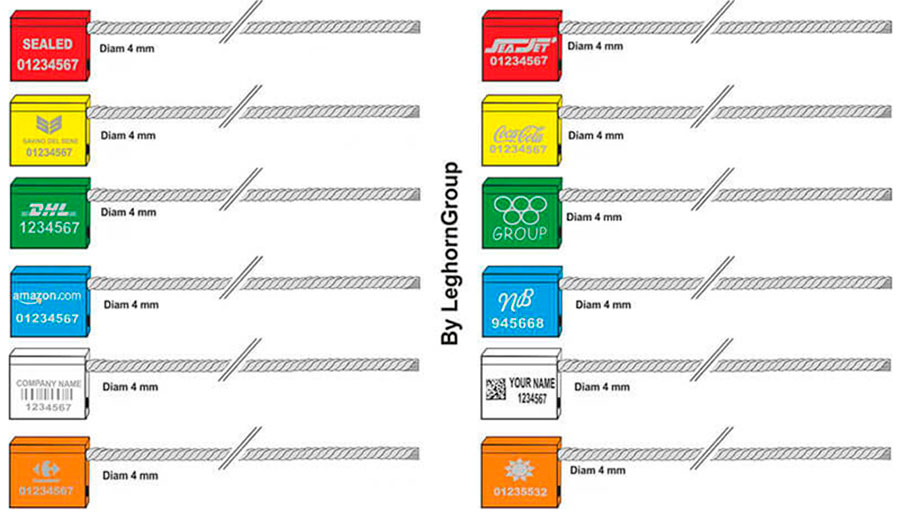

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

SEQUENTIAL NUMBERING AND CUSTOMISATION
– LASER PRINTING
– Sequenced numbering up to 15 digits
– Also alphanumeric
– Bar-code possibility
– Customised up to 20 characters on one line
– Logos available upon request

PACKAGING
500 pcs per carton
Carton size: 39×29×19 cm
Carton weight: 19,6 kg

The post Cable seal 4×250 mm appeared first on LeghornGroup India.

TECHNICAL DRAWING

SIZE
Diameter: 5 mm
Length: 250 mm
Different size available on demand.

MATERIAL
The body: painted aluminium
Cable: steel wire – different diameters

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

SEQUENTIAL NUMBERING AND CUSTOMISATION
– LASER PRINTING
– Sequenced numbering up to 15 digits
– Also alphanumeric
– Bar-code possibility
– Customised up to 20 characters on one line
– Logos available upon request

PACKING
250 pcs per carton
Carton size: 40x30x18 cm
Carton weight: 17 kg

The post Cable Seals 5×250 mm appeared first on LeghornGroup India.

It is an adjustable seal and can be used in many different conditions, in particular in any application to protect cargos during shipping and intermodal freight.

CABLESEAL 3,5×250 mm has the body completely made in anodised aluminium (*) and a steel cable comes out of it.

Once inserted the opposite end of the cable into the hole, and pulled it to the maximum possible extent, there will be no way to open the seal unless by breaking it with good shears.

This is a High Security Seal compliant with requirements impose by ISO 17712:2013.

(*) Anodising is a non- spontaneous electrochemical process by which a protective oxide layer forms on the surface of the treated metal and protects it from corrosion.

TECHNICAL DRAWING

SIZE
Diameter: 3,5 mm
Length: 250 mm
Different size available on demand.

MATERIAL
The body: painted aluminium
Cable: steel wire – different diameters

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

SEQUENTIAL NUMBERING AND CUSTOMISATION
– LASER PRINTING
– Sequenced numbering up to 15 digits
– Also alphanumeric
– Bar-code possibility
– Customised up to 20 characters on one line
– Logos available upon request

PACKING
500 pcs per carton
Carton size: 40×30×18 cm
Carton weight: 13 kg

The post High security cable seal 3.5×250 mm ISO 17712 appeared first on LeghornGroup India.

NEEDED CERTIFICATES TO BE IN GOOD STANDING WITH THE USE OF HIGH SECURITY SEALS COMPLIANT WITH ISO 17712: 2013

TECHNICAL DRAWING

SIZE
Length: 73.5 mm
Diam (head): 20 mm
Diam (pin): 8 mm

MATERIAL
Metal parts: Carbonitrided steel
Plastic parts: Polystyrene with pigment paint compliant with safety requirement of RoHS – Restriction of Hazardous Substances, European Directive 2002/EC.

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

MARKING OPTIONS
– Laser etching
– Sequential numbering up to 15 digits
– Barcode
– Data Matrix
– RFID option
– Customised printing up to 20 alphanumeric characters on one single line
– Client logo printing or embossing on request

PACKAGING
250 pcs per carton
Carton size: 39x19x16 cm
Carton weight: 13,3 kg

The post High security bolt seal NEPTUNE SEAL appeared first on LeghornGroup India.

RFID TAMPER EVIDENCE e-SEAL is the step ahead in front of already existing RFID seals.
RFID NEPTUNE SEAL TAMPER EVIDENCE main features:
– Certified in compliance with requirements as per ISO 17712:2013 High Security Seal
– It can be read quickly and accurately by static gateway reading systems or by handheld devices assigned to check point personnel.
– Any tampering event occurring with the e-seal is stored in its chip memory. This activates the – TAG TAMPER ALARM, which provides the status of the seal at readings (tampered/not tampered, i.e. breached or intact seal);
– In the event of tampering, the e-seal irreversibly changes its electronic status. The TAMPER status is automatically flagged up when reading is taken.
– The RFID chip can also store additional information. The chip can be written by  using the RFID reader/writer device. Further information added and the chip itself can be password protected.

The key pieces of information that the seal provides are:
– RFID e-seal serial number
– Date and time when the reading is taken
– Number of readings taken for each RFID e-seal
– Registration sequence in the event of having two or more RFID e-seals on two containers on the same trailer
– Status of the  seal (TAMPERED / NOT TAMPERED)

TECHNICAL SPECIFICATION

Radio Frequency specification
Frequency …………………………………………… 860 – 960 MHz – UHF EPC Global
Reference RF Standard ……………………….. ISO/IEC 18000-63
RF Protocol …………………………………………. EPC Class 1 Gen2 / ISO/IEC 18000-63
Technology …………………………………………. Passive
Integrated circuit ………………………………… NXP

Mechanical specification
IP Protection ………………………………………. IP66
Operative Temperature ……………………… – 30°C / + 80 °C
Storage Temperature …………………………. – 30°C / + 80 °C
ISO 17712:2013 …………………………………… Yes

Electronic specification
Reading distance handheld reader ……… 3 m (depending on the reader)
Reading distance gate reader ……………… 8 m (depending on the reader)
Quality ………………………………………………… 100% performance tested
User read / write memory …………………… Yes
Read / write cycle ………………………………… 10000
Memory size ……………………………………….. 128 bit from chip NXP G2iL+
Password protection ……………………………. Yes
Tamper Detection ……………………………….. Yes
TID (tag unique identification) ……………… Yes
S/N in memory (same of seal) ………………. Yes
Data retention ……………………………………… 20 year
Integration with handheld reader ………… commercial reader, OS ANDROID
Integration with gate reader ………………… commercial industrial reader

TECHNICAL DRAWING

SIZE
Metallic pin
Diameter: 8 mm
Length: 74 mm

Bolt size
Diameter: 22 mm

Electronic Part (flag): 42×115×4 mm
Weight: 70 gr

MATERIAL
Steel + ABS  o polystyrene per Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

PACKING
50 pcs per carton
Carton size: 32×25×15 cm
Carton weight: 5 kg

* LOGISTIC VERSION (ID only) AVAILABLE ON REQUEST

The post High security UHF RFID bolt seal NEPTUNE SEAL appeared first on LeghornGroup India.

TECHNICAL DRAWING

SIZE
Width: 35 mm
Length: 480 mm

MATERIAL
Galvanized steel

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

SEQUENTIAL NUMBERING AND CUSTOMISATION
– METALLIC ENGRAVED
– Sequenced numbering up to 6 digits
– Customised up to 10 characters on one line
– Logos available upon request

PACKING
25 pcs per carton
Carton size: 50×20×15 cm
Carton weight: 13,5 kg

The post High security container barrier seal BLOCK BAR appeared first on LeghornGroup India.
