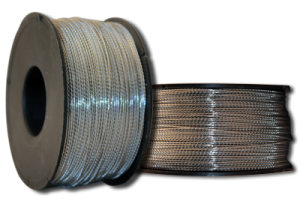

GALVANIZED STEEL SEALING WIRE

v.anei — Sat, 14 Dec 2019 11:35:08 +0000

LeghornGroup can offer a complete range of galvanized steel sealing wire strips in pre-cut lengths, suitable for the most various needs and applications.
This product is usually used in conjunction with wire seals.
The wire has a special spirally wound construction for non-slip sealing, when used together with any type of security seal.

Galvanized steel sealing wire strips available in stock are shipped within 24 hours from receipt of order.
For galvanized steel sealing wire strips of custom length or in material other than galvanized steel shipment is done in 3-5 days from date of order receipt.

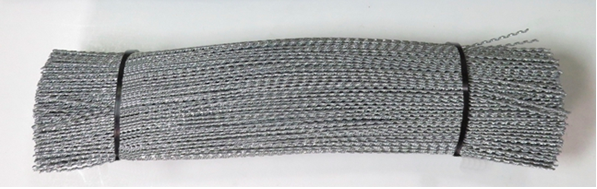

SAMPLES OF PRE-CUT LENGTH GALVANIZED STEEL SEALING WIRE

RELATED PRODUCTS

The post GALVANIZED STEEL SEALING WIRE appeared first on LeghornGroup India.

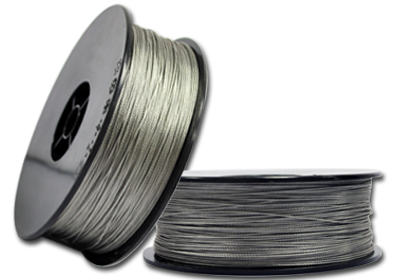

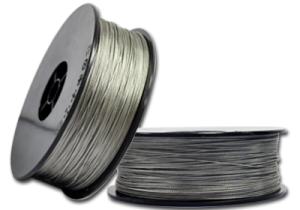

STAINLESS STEEL WIRE

v.anei — Sat, 14 Dec 2019 11:32:24 +0000

Seven stainless steel wire diam: 0,32 mm. transparent plastic covered.
Total diam 0,90 mm
Inox Steel cable approximate weights and lengths
1kg reel is equal to 406m
250m reel is equal to 675g
500m reel is equal to 1440g
1000m reel is equal to 2960g

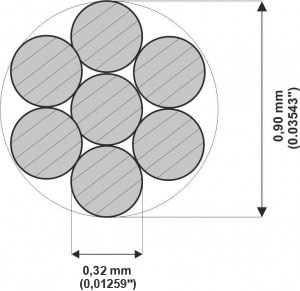

TECHNICAL DRAWING

1 MM DIAMETER STAINLESS STEEL SEALING WIRE TECHNICAL DATA.

GRADE	N.W.	TS	EL
	(kg)	(Mpa)	(%)
304	483.88	785	45

1 MM DIAMETER STAINLESS STEEL SEALING WIRE CHEMICAL COMPOSITION (%).

C	Si	Mn	P	S	Cr	Ni
0.03	0.46	1.30	0.026	0.008	18.23	8.03

The post STAINLESS STEEL WIRE appeared first on LeghornGroup India.

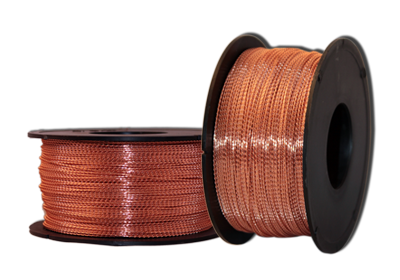

COPPER SEALING WIRE

v.anei — Sat, 14 Dec 2019 11:32:24 +0000

Wire seals and their sealing wire are particularly suitable in the fuel handling field.
All the sealing wires can be used, but in this field a copper sealing wire is more advisable to avoid any possibility of sparking while using it.
Also this copper wire has a spiral shape and a diameter of 1 mm.
It is extremely flexible and once the seal is pressed down on the sealing wire, it cannot be pulled out without breaking it.
We generally supply it in various reels weight and in parts which vary from 10 to 150 cm long.

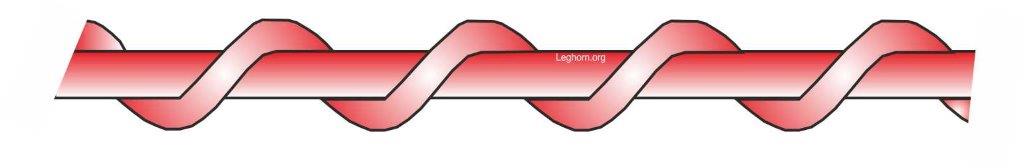

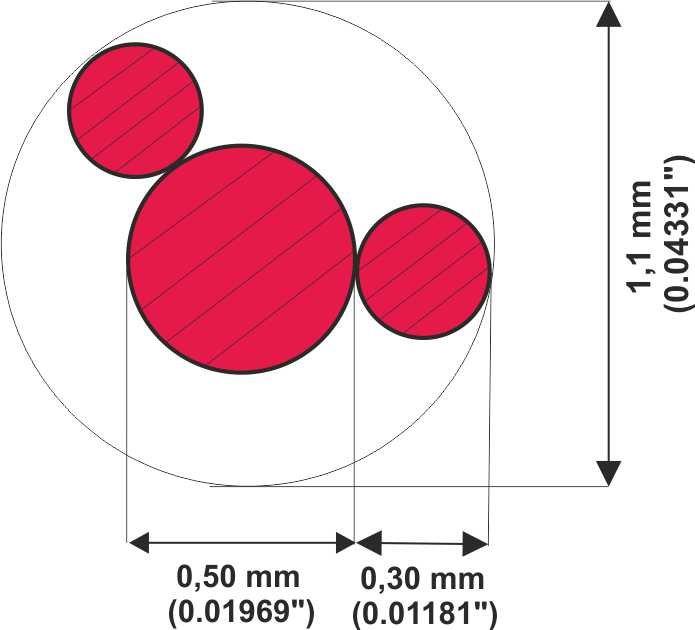

TECHNICAL DRAWING

MATERIAL CLASSIFACTION
RED COPPER ANNEALED ASTM B 49,92 – UNI EN 1977 – 2000

CHEMICAL BREAKDOWN

Cu	Fe	Pb	As	Ag	Ni	Sn	S
99,974	0,0035	0,0013	0,0011	0,011	0,0008	0,0009	0.004

COLOURS

COMPOSITION
Core wire: Ø 0.50 mm
Spiral wire: Ø 0.30 mm

MECHANICAL CARACHTERISTICS: TOTAL DIAMETER / BREAKING LOAD

Standard Diameter mm	TOLLERANCE Ø	BREAKING LOAD N/mm²
1.00	10 %	210/220

STRENGTH PER METRE: 2,78g (1 Kg = 360 mt appx – 2 .3 lb = 1,213 ft.)

STRUCTURAL CARACTHERISTICS
COIL DISTANCE: 2.00 mm (50 coils per 100 mm)

SURFACE CARACHTERISTICS
SURFACE SATE: GLOSSY

ELONGATION
23-23%

RELATED PRODUCTS

The post COPPER SEALING WIRE appeared first on LeghornGroup India.

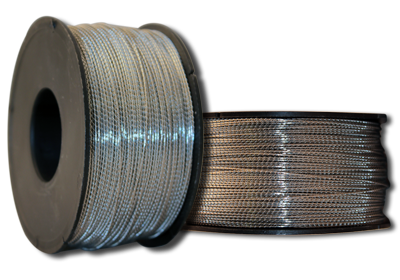

GALVANIZED STEEL WIRE

v.anei — Sat, 14 Dec 2019 11:32:24 +0000

The 1mm diameter galvanized sealing wire for seals is the most used in the field of wire seals.
Its spiral shape is suitable for being used with lead seals and the related lead seal press.
Once the lead seal is pressed down correctly, pulling out the seal would not be possible.
We generally supply galvanized sealing wire in various reels weight and in parts which vary from 10 to 150 cm long.

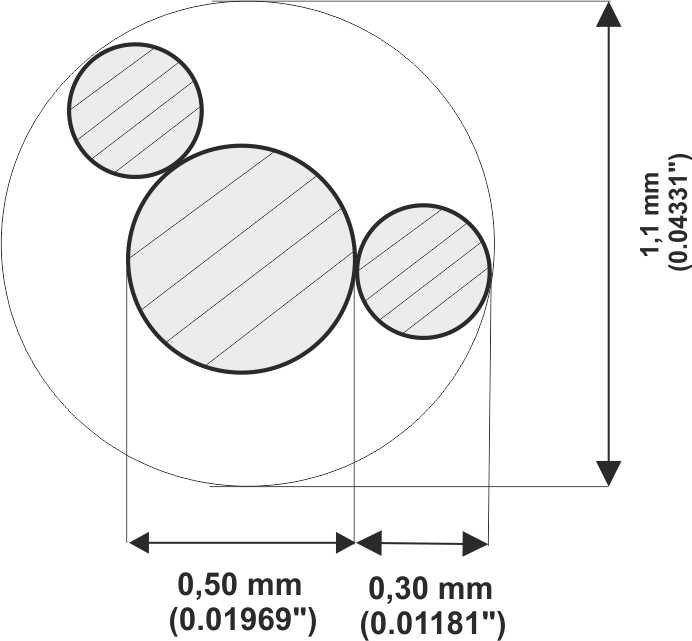

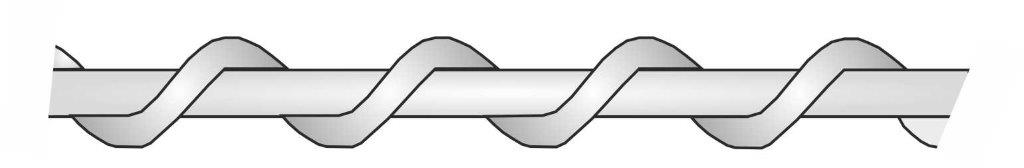

TECHNICAL DRAWING

MATERIAL CLASSIFACTION
GALVANIZED STEEL ANNEALED

CHEMICAL BREAKDOWN

C %	Mn %	P %	S %
0.08	0.045	0.035	0.035

COLOURS

COMPOSITION
Core wire: Ø 0.50 mm
Spiral wire: Ø 0.30 mm

MECHANICAL CARACHTERISTICS: TOTAL DIAMETER / BREAKING LOAD

STANDARD DIAMETER mm	TOLLERANCE Ø	BREAKING LOAD N/mm²
1.00	10%	300/450

STRENGTH PER METRE: 2,45g (1 Kg = 400 m ca)

STRUCTURAL CARACTHERISTICS
COIL DISTANCE: 2.00 mm (50 coils per 100 mm)

SURFACE CARACHTERISTICS
– SURFACE SATE: ZINC COATING
– Minimum zinc coating 20gr/m2
