RFID Cable Keyholder

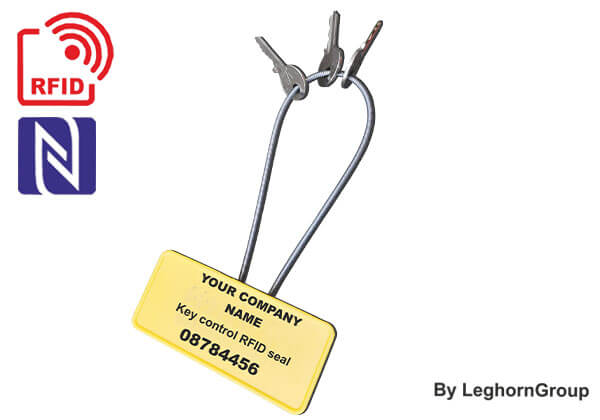

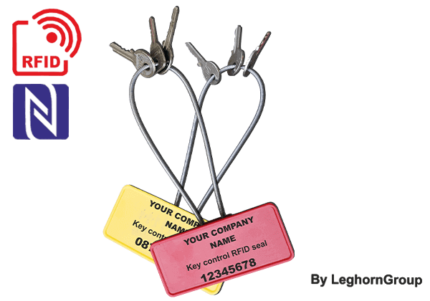

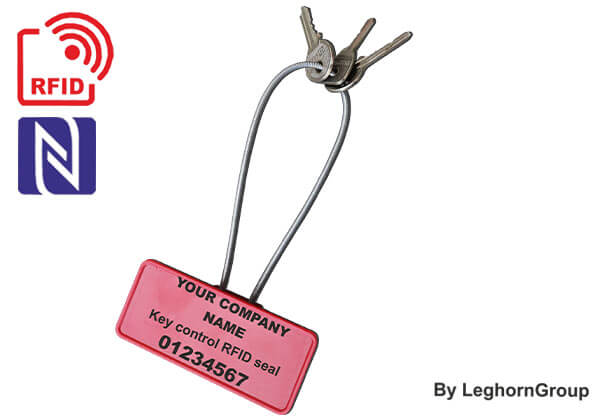

RFID CABLE KEYHOLDER is a sturdy cable-style locking keyholder featuring high security thanks to the use of RFID technology
Description
RFID CABLE KEYHOLDER is a sturdy cable-style locking keyholder featuring high security thanks to the use of RFID technology. The robust carbonitrured steel cable with 3.5 mm of diameter and standard lenght of 337 mm has one floating end while the other end is captive. After inserting the keys, the cable lenght can be adjusted and once it is fixed no further accidental sliding can occur. The system prevents keys being dumped while being serviced.
The keyholder body is in solid shock-resistant polystyrene and is coloured in various colours to enable a way to code groups of keys to specific functions. Plastics used for the body is compliant with European Directive 2002/EC – Restriction of Hazardous Substances (RoHS), and can be customised on request with laser engraving of numbers, codes and customer logo.
Keyholders are available in several lengths and custom lengths are also available on special order.
The use of RFID technology enables automatic and univocal identification of every keyholder, even when many of them are gathered together in a security bag or security box. Any attempt to open or cut and reconnect the cable is permanently registered by the RFID chiptag and evidence of the tamper is given when the keyholder is read again, for instance during daily check at time when keyholders are brought back to the main office by the security staff.
Radio Frequency specification | |
Frequency: | 860 – 960 MHz – UHF EPC Global |
Reference RF Standard: | ISO/IEC 18000-6C |
RF Protocol: | EPC Class 1 Gen2 / ISO/IEC 18000-6C |
Technology: | Passive |
Integrated circuit | NXP |
Mechanical specification | |
Material | Aluminum + ABS or polystyrene in accordance with Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC. |
IP Protection | IP66 |
Operative Temperature | – 30°C / + 80 °C |
Storage Temperature | – 30°C / + 80 °C |
Size Electronic Part (flag) | 42x115x4 mm |
Wire standard lenght | 337 mm |
Wire diameter | 3,5 mm |
Weight | 61 g |
ISO 17712:2013 | yes |
Package size | cm |
Package weight | 6,1 kg |
Package number seal for box | 100 pcs |
Electronic specification | |
Reading distance handheld reader | 3 m (dependig on reader) |
Reading distance gate reader | 8 m (dependig on reader) |
Quality: | 100% performance tested |
User Memory: | Yes |
Read / write cycles: | 10000 |
Memory size: | from 128 bit up to 448 bit of EPC Memory;up to 640 bit of User Memory |
Password protection: | yes |
Tamper Detection: | yes |
TID (tag unique identification): | yes |
S/N in memory (same of seal): | yes |
Data retention: | 20 years |
Integration with handheld reader: | commercial PDA, OS ANDROID |
Integration with gate reader | commercial industrial reader |

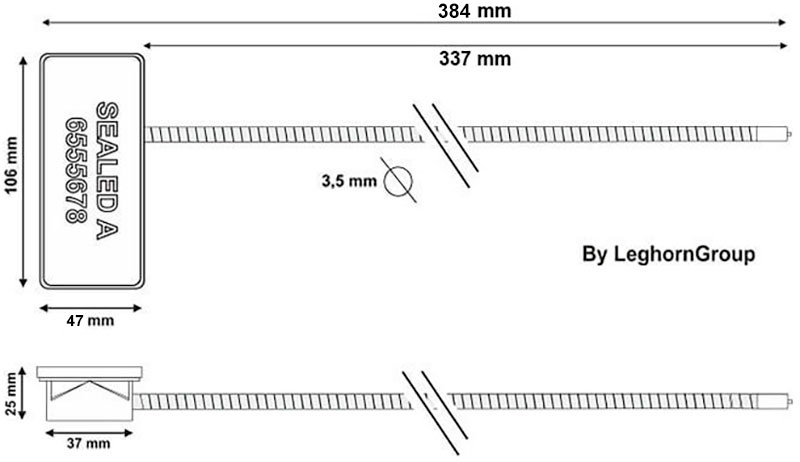

TECHNICAL DRAWING

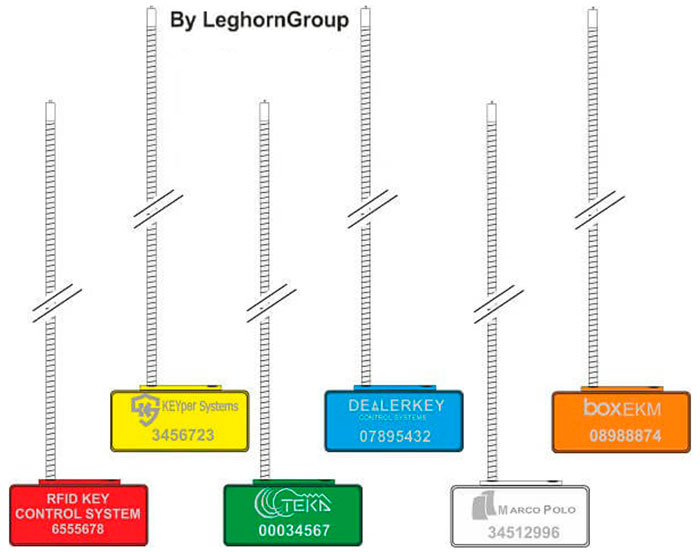

COLORI & PERSONALIZZAZIONI
* LOGISTIC VERSION AVAILABLE ON REQUEST

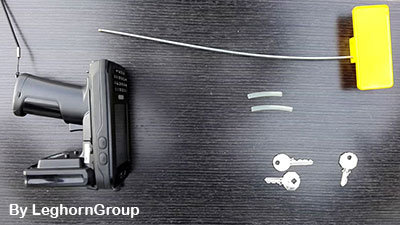

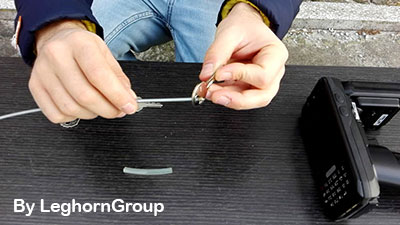

How to use
Video
Technical documentation
You may also like…
-
Cable lock UHF RFID three-state e-seal MYRMIDON SEAL
High security UHF RFID cable seal, automatic identification in radio frequency in the tamper evidence version, ISO 17712: 2013 certified
-

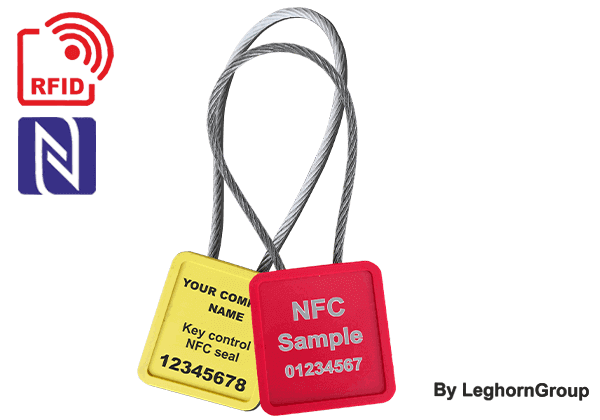

MINICABLE RFID – UHF/NFC
Metal adjustable cable-lock seal
-

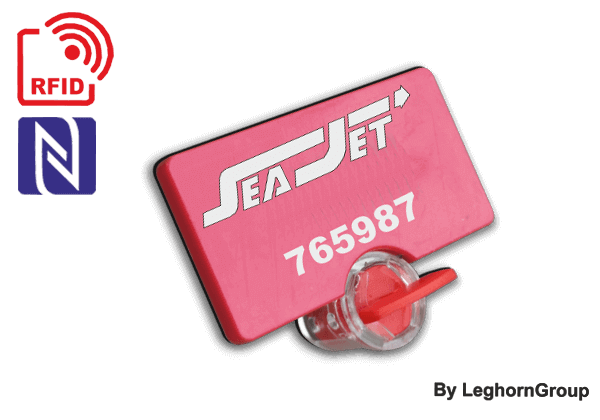

UHF/HF/NFC RFID meter seal TWIST SEAL
