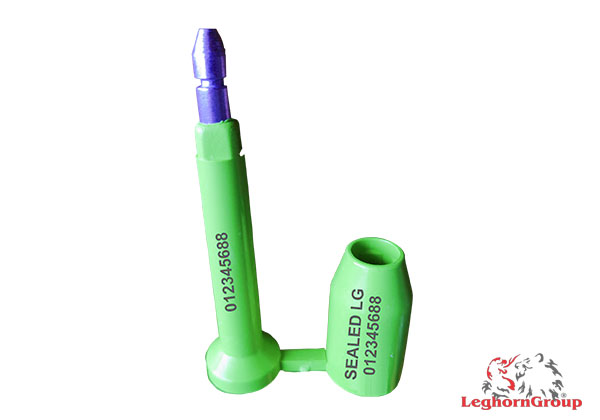

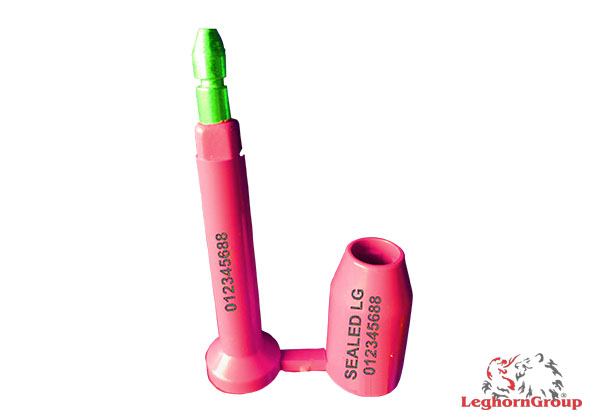

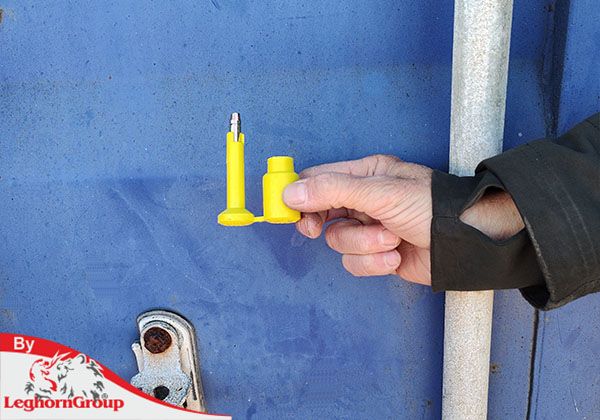

Container Bolt Seal 80mm Round Lock

Description

Ideal Seals for Containers, Trucks, Wagons. Logistics applications etc.

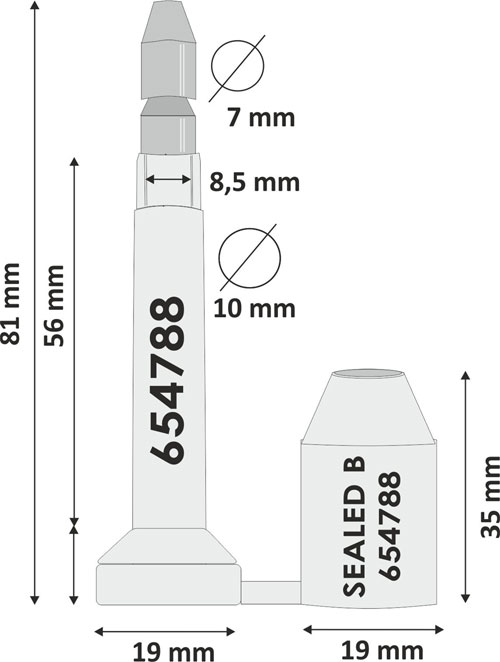

TECHNICAL DRAWING

SIZE
Locking Pin Diameter: 7 mm / 8 mm
Locking Pin Length: 80 mm



SEQUENTIAL NUMBERING AND CUSTOMISATION
Laser Marking
One line with customer Logo plus one line of consecutive numbers up to 10 digits.



MATERIAL
Body: Polypropylene
Bolt: Galvanised Iron



AVAILABLE COLORS
Yellow – Red, other colors available on request



PACKING
100 Seals to a poly bag.
250 Seals to a carton.



USE

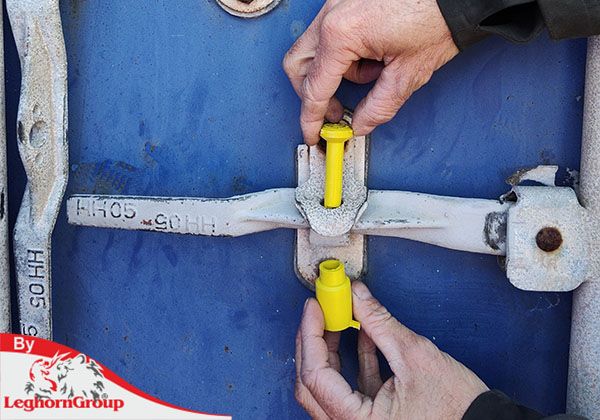

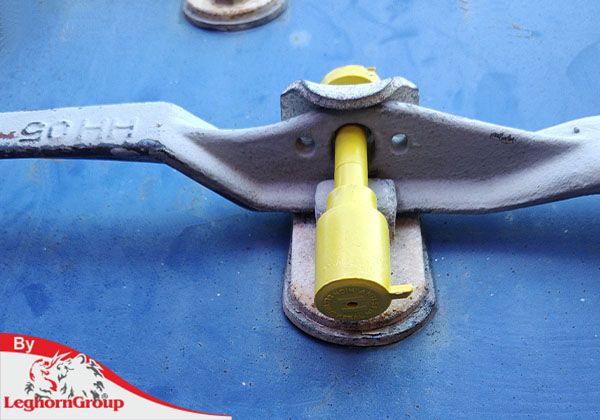

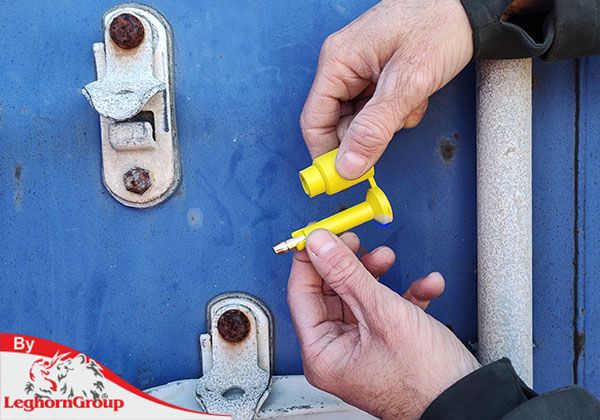

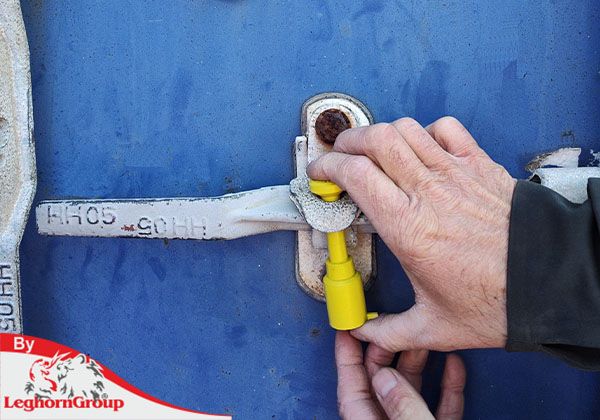

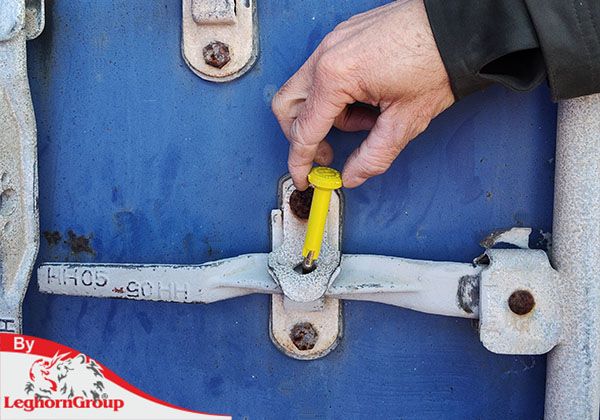

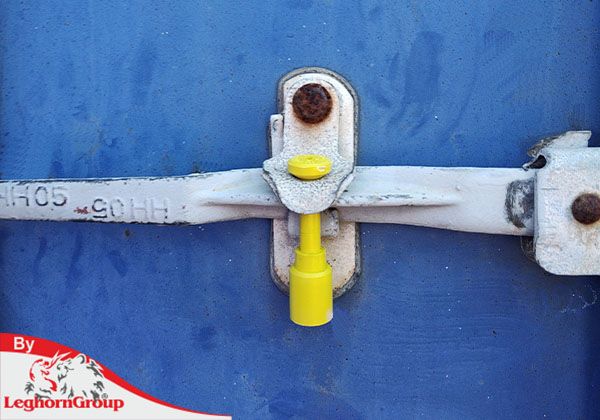

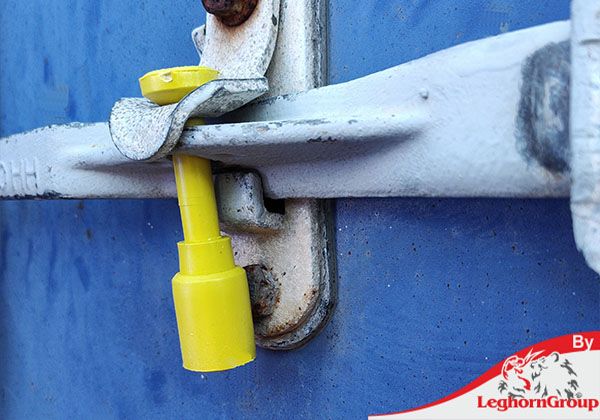

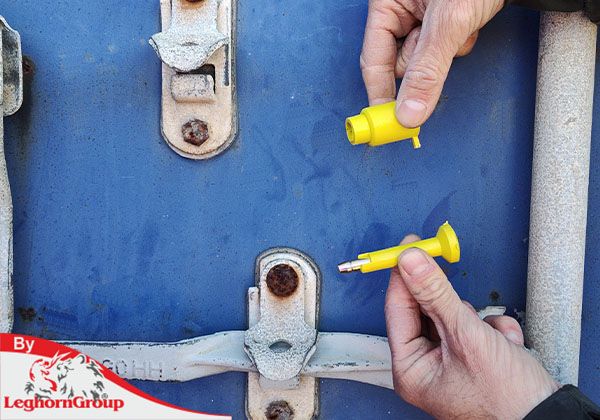

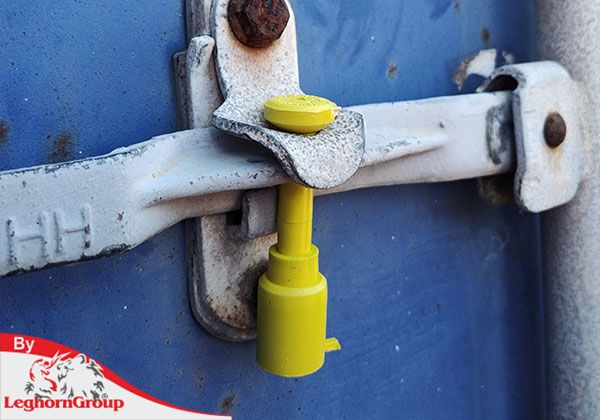

Pressing Male part into Female part after passing through object to be seals, until a tactile ‘click’ is heard, attains complete locking.
