Electronic reusable security seal e-LOCK STANDARD

Electronic reusable security seal

Description

eLOCK STANDARD is a reusable electronic lock that announces the unauthorized opening of the truck / container by generating a random number, which must be the same before and after the delivery of the cargo. As soon as the seal is closed, it automatically generates a unique number that can be transferred to the cargo documentation. Simple to use, stand-alone, battery powered unit. It prevents internal theft and fraud along the entire supply chain.

Product specifications:

Rugged housing completely protected from water, dust, salt, dirt and oil. It can withstand severe temperature ranges.

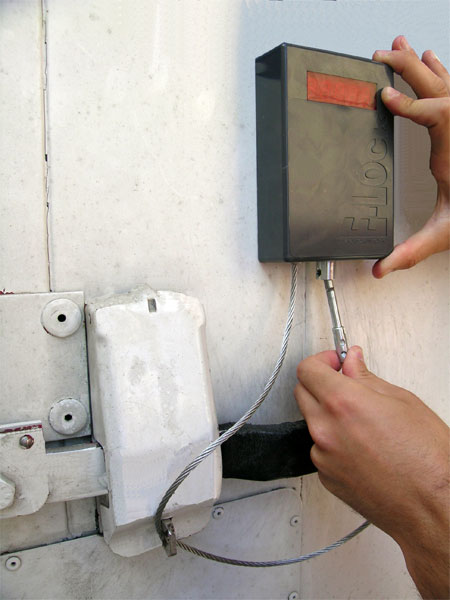

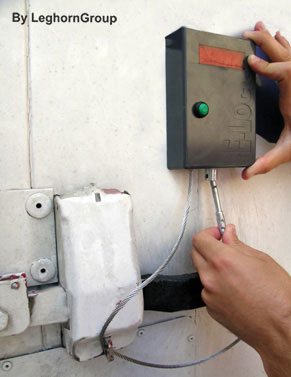

Easy to attach to the back of a truck either by screws or magnets, by using a special metal plate.
Easy to use and requires no maintenance.
Long battery lifetime (5000 sealing activities). The battery can be replaced by the user, making the eLOCK STANDARD a very cost effective solution to prevent goods losses along the supply chain, almost maintenance-free.

TECHNICAL DRAWINGS

SIZE AND PACKAGING

Height : 137 mm
Width: 88 mm
Depth: 26 mm
Spring lock: 9 mm diam.
Total length
Lock plug: 126,5 mm
PVC coated steel cable: 5 mm diam.

TECHNICAL DETAILS

Dimension: 106x156x38 mm
Weight: 590 gr
Fixing: 4 M6 screws
Actuator: Mechanical life 1.000.000 cycle
Operative temperature: -20 °C + 50 °C
Storing temperature: -25 °C + 80 °C
Battery: Lithium Long life non rechargeable
Waterproof: IP 66 equivalent
Case Material: Shock-resistant Polycarbonate and Polypropylene
Sealing: PVC
Vibration: Vibration resistant
Display: LED 5 Digit – Red – Night readable
Lock plug: Plug with spring lock – Inox AISI 316
Security: May be locked with other kind of security seal
Cable: TIR Cable in PVC coated steel cable
