High security cable seal 3.5×250 mm ISO 17712

Description

CABLESEAL with 3,5 mm of cable diameter is the best trade-off between security degree and versatility of usage.

It is an adjustable seal and can be used in many different conditions, in particular in any application to protect cargos during shipping and intermodal freight.

CABLESEAL 3,5×250 mm has the body completely made in anodised aluminium (*) and a steel cable comes out of it.

Once inserted the opposite end of the cable into the hole, and pulled it to the maximum possible extent, there will be no way to open the seal unless by breaking it with good shears.

This is a High Security Seal compliant with requirements impose by ISO 17712:2013.

(*) Anodising is a non- spontaneous electrochemical process by which a protective oxide layer forms on the surface of the treated metal and protects it from corrosion.

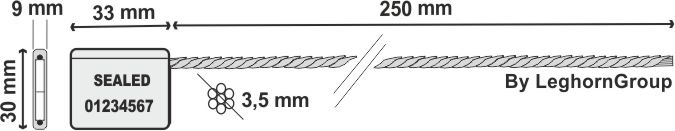

TECHNICAL DRAWING



SIZE
Diameter: 3,5 mm
Length: 250 mm
Different size available on demand.



MATERIAL
The body: painted aluminium
Cable: steel wire – different diameters

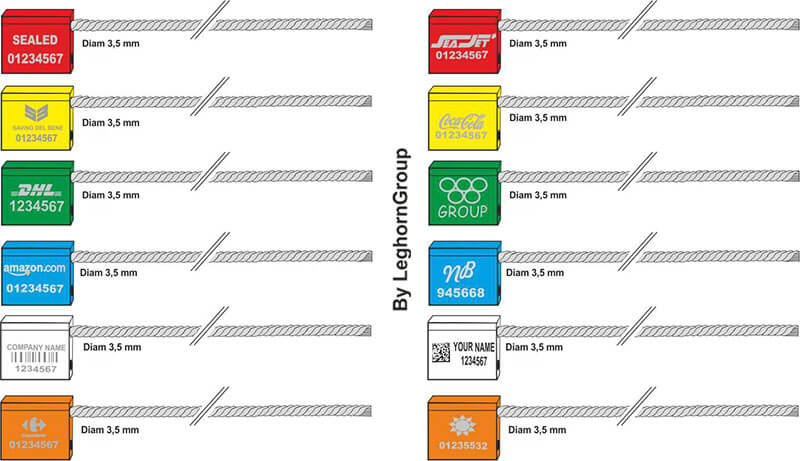

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)



SEQUENTIAL NUMBERING AND CUSTOMISATION
– LASER PRINTING
– Sequenced numbering up to 15 digits
– Also alphanumeric
– Bar-code possibility
– Customised up to 20 characters on one line
– Logos available upon request



PACKING
500 pcs per carton
Carton size: 40×30×18 cm
Carton weight: 13 kg

Certificate MIRDC

Certificate SGS
