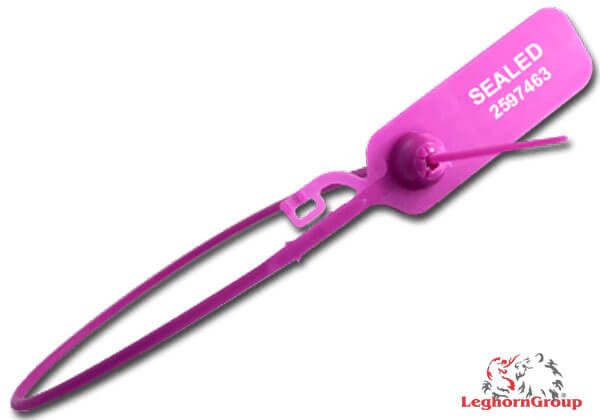

Pull-tight plastic seal JUPITER 3.3×315 mm

Pull-tight plastic seal with metal locking insert. Tear-off tag possibility. Label size 22×50 mm

REQUEST FOR QUOTATION

Description

Pull-tight plastic seal with metal locking insert. Tear-off tag possibility.

Pull-tight plastic seal with metal locking insert. Tear-off tag possibility.

Pull-tight plastic seals. Quick and safe application. Metal locking insert and possible tear-off tag for easy removal.

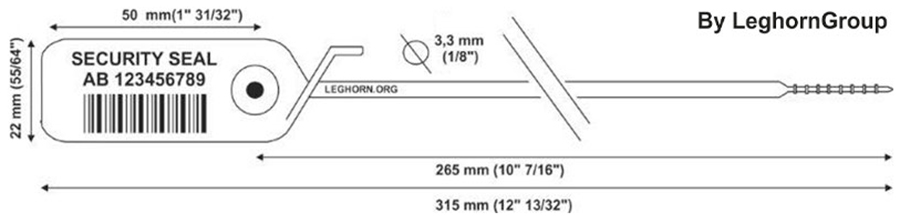

TECHNICAL DRAWING

plastic seal jupiter 3.3×315 mm technical drawing



SIZE
Diameter: 3,3 mm (1/8”)
Length: 315 mm (12” 13/32”)
Label: 22×50 mm (55/64”×1” 31/32”)



MATERIAL
In accordance with : Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.



COLOURS & CUSTOMIZATIONS

pull tight plastic jupiter seal colours customizations



MARKING
– Thermal transfer
– Sequentially numbering (max 15 digits)
– Barcode possibility
– Customisation up to 20 digits on a line
– Logo printing upon customer’s request
– For special orders embossed logo printing



PACKAGING
Cartons of 1.000 seals – in strips of 10 pcs
Carton dimensions: 56×34×20 cm (22” 3/64”×13” 25/64”×7” 7/8”)
Carton weight: 4 kg (8 lb)

General presentation

icona presentazione catalogoView Presentation
