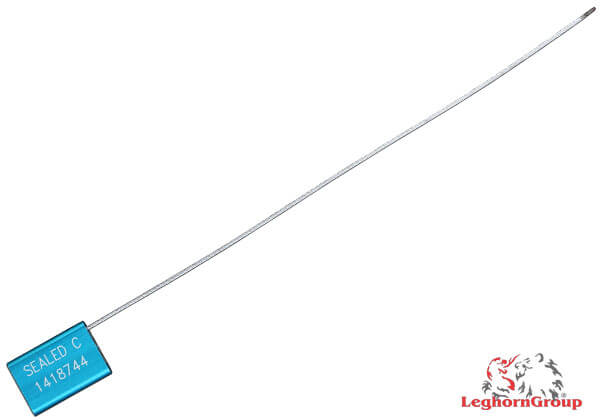

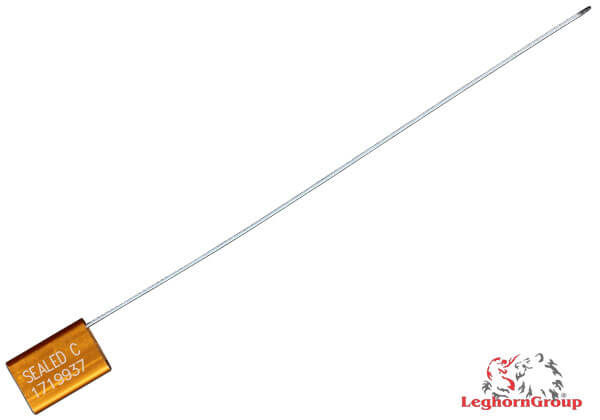

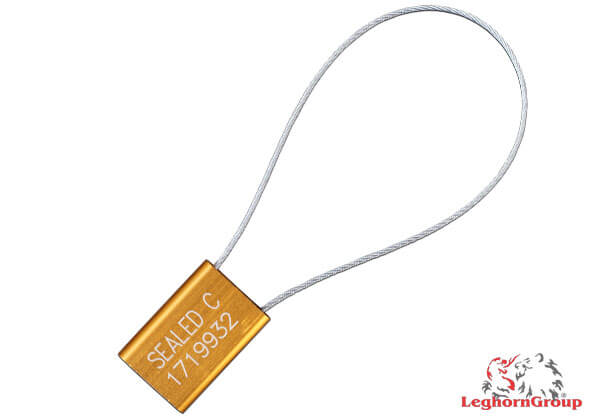

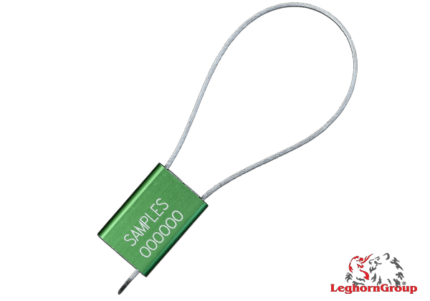

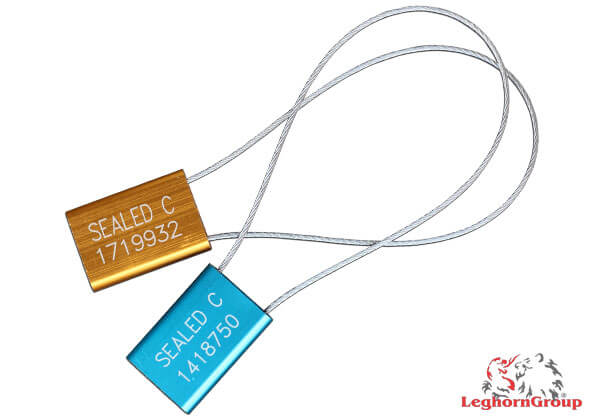

Cable Seal 1×180 mm

These security seals can be adjusted by inserting the steel cable in the holes and then pulling on it

REQUEST FOR QUOTATION

Description

Security seal, one of the most commonly used.

With its cable diameter of 1mm, it can be used in any locking situation. Particularly suitable to control counter meters of electricity, water and gas.

The body is completely made in anodised aluminium (*) and a steel cable comes out of it.

Once inserted the opposite end of the cable into the hole, and pulled it to the maximum possible extent, there will be no way to open the seal unless by breaking it with good shears.

(*) Anodising is a non- spontaneous electrochemical process by which a protective oxide layer forms on the surface of the treated metal and protects it from corrosion.

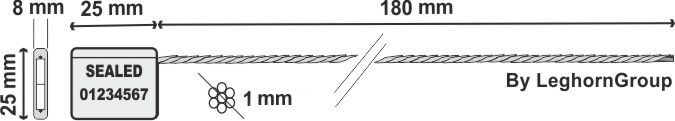

TECHNICAL DRAWING



SIZE
Diameter: 1 mm
Lenght: 180 mm



MATERIAL
The body: painted aluminium
Cable: steel wire – different diameters

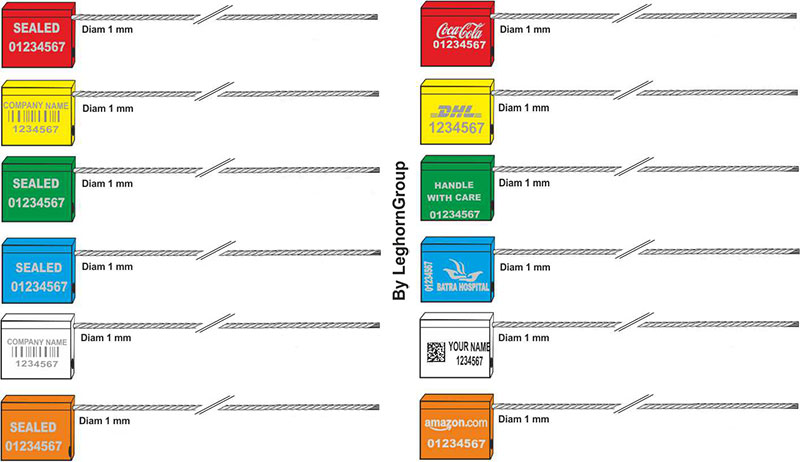

COLORS & CUSTOMIZATIONS

cable seal 1×180 mm colors customizations



SEQUENTIAL NUMBERING AND CUSTOMISATION
– LASER PRINTING
– Sequenced numbering up to 15 digits
– Also alphanumeric
– Bar-code possibility
– Customised up to 20 characters on one line
– Logos available upon request



PACKAGING
1000 pcs per carton
Carton size: 30x28x15 cm
Carton weight: 8 kg

Certificates

certificates icon   Certificate University of Pisa
