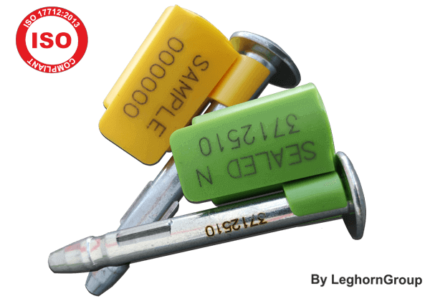

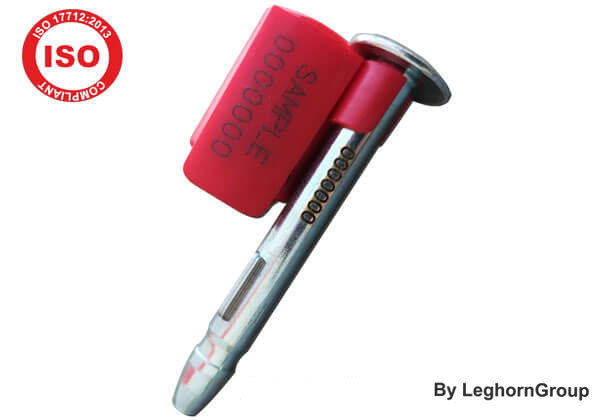

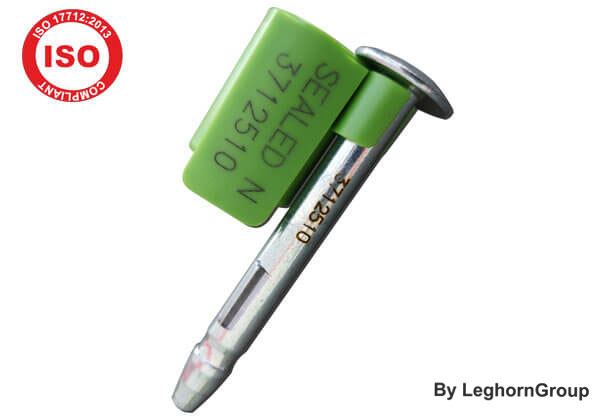

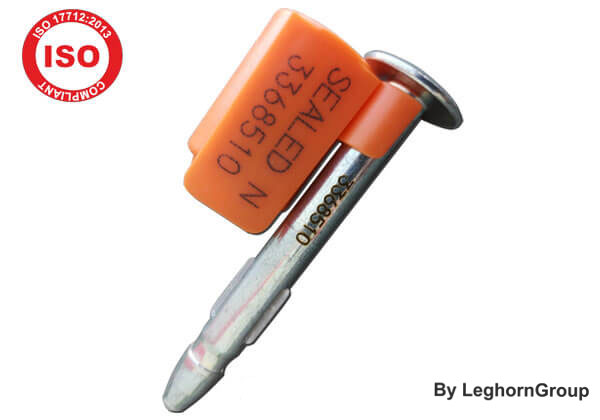

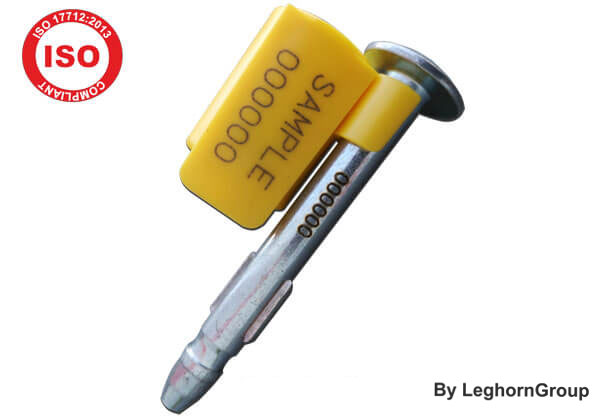

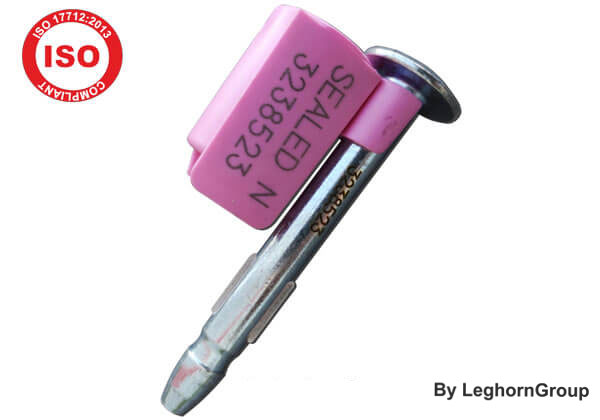

High security bolt seal NEPTUNE SEAL
High Security Bolt Seal for containers and Customs. ISO17712 approved
Description
High security bolt seal NEPTUNE SEAL, compliant with high security international standard ISO17712 and specifically with the requirement of having the internal metal part exceeding 18 mm. The patent pending innovative mechanical design is characterised by two metal tabs attached to the bolt, which securely slot into the locking channel, thus preventing any breaching by high speed spinning of the female part of the seal. Any tampering attempt will give evidence of irreparable damage onto the high security bolt seal.

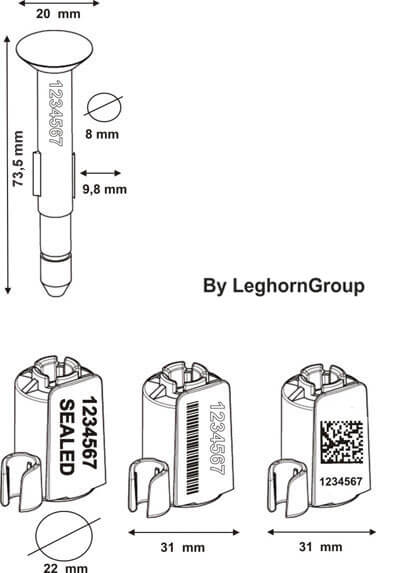

TECHNICAL DRAWING
SIZE
Length: 73.5 mm
Diam (head): 20 mm
Diam (pin): 8 mm
MATERIAL
Metal parts: Carbonitrided steel
Plastic parts: Polystyrene with pigment paint compliant with safety requirement of RoHS – Restriction of Hazardous Substances, European Directive 2002/EC.

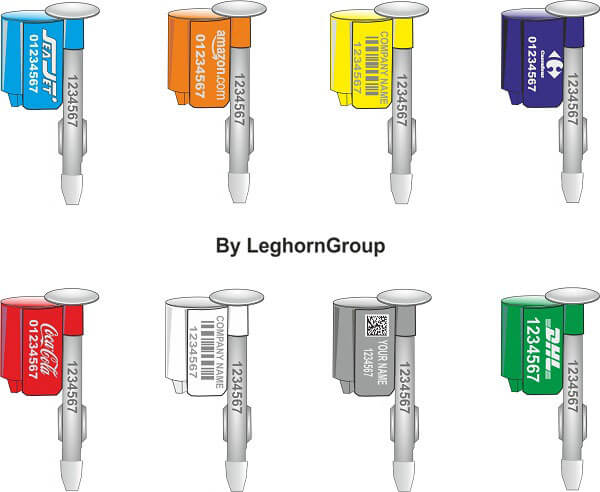

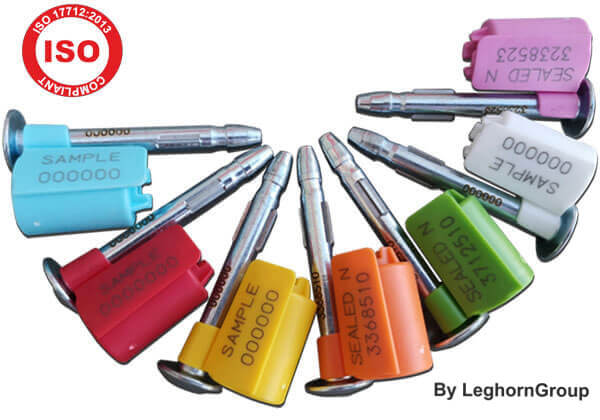

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)
MARKING OPTIONS
– Laser etching
– Sequential numbering up to 15 digits
– Barcode
– Data Matrix
– RFID option
– Customised printing up to 20 alphanumeric characters on one single line
– Client logo printing or embossing on request
PACKAGING
250 pcs per carton
Carton size: 39x19x16 cm
Carton weight: 13,3 kg
How to use

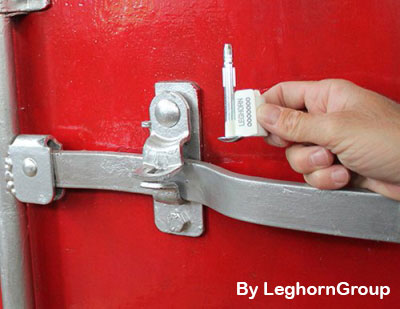

A) Please check that metal pin and plastic bolt have the same numbering before using it.
B) Remove the pin from its site.

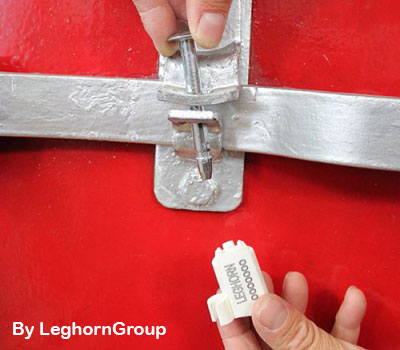

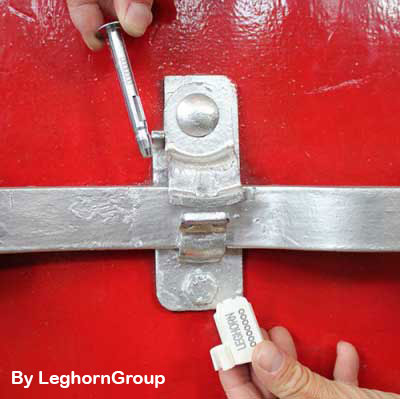

C) Insert pin tip into the container handle ring.

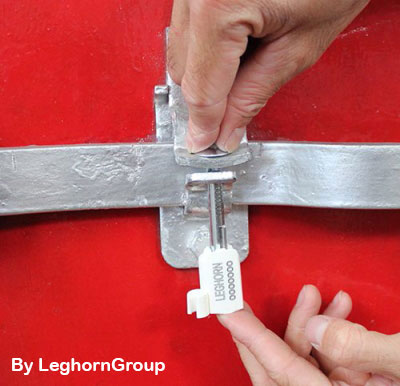

D) Slide pin tip into the hole of the bolt part of NEPTUNE SEAL and press steadily.

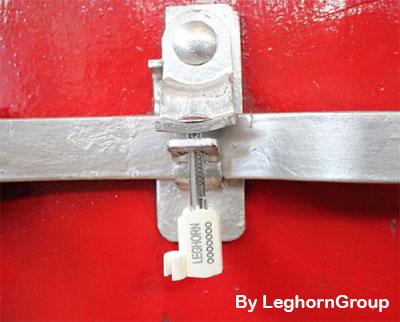

E) Now the seal is properly closed.

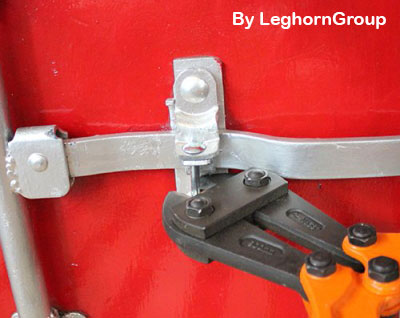

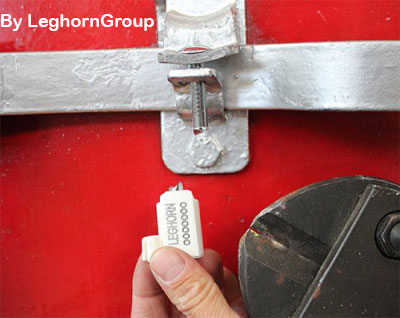

F) Use suitable shears to open the seal.

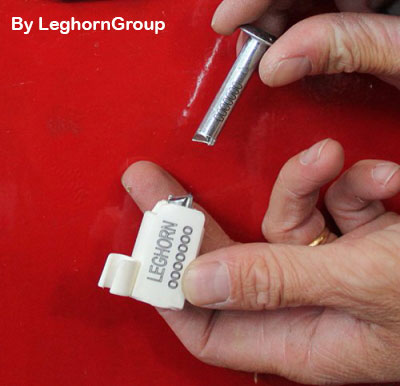

G) Collect the broken parts of the seal.
H) Check if the seal body shows evidence of tampering signs different from those caused by the used shears: if everything is OK then the cointainer can be opened.
