High Security Container Barrier Seal BLOCK BAR

Economic adjustable barrier seals for container

REQUEST FOR QUOTATION

Description

Adjustable security seals, barrier seal for containers. The standard version of Blockbar is the most economic barrier seal to block the central container’s bars. Consequential numbering only on the closure pin.



TECHNICAL DRAWING

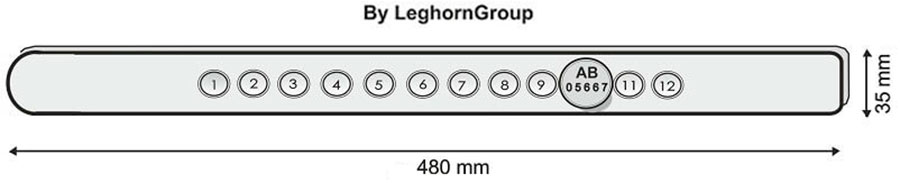

barrier seal block bar technical drawing

SIZE
Width: 35 mm
Length: 480 mm



MATERIAL
Galvanized steel



COLORS & CUSTOMIZATIONS

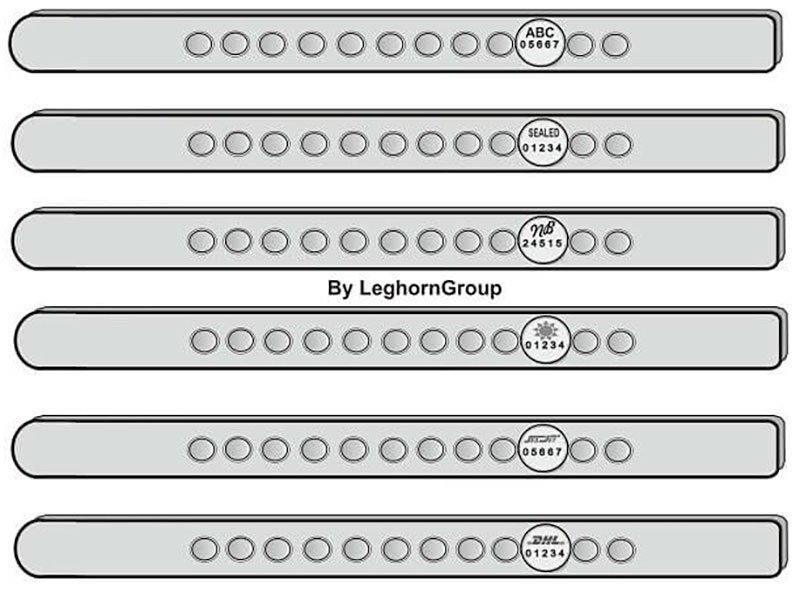

barrier seal block bar colors customizations



SEQUENTIAL NUMBERING AND CUSTOMISATION
– METALLIC ENGRAVED
– Sequenced numbering up to 6 digits
– Customised up to 10 characters on one line
– Logos available upon request



PACKING
25 pcs per carton
Carton size: 50x20x15 cm
Carton weight: 13,5 kg

How to use

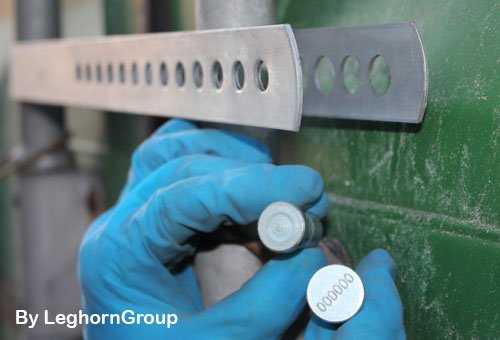

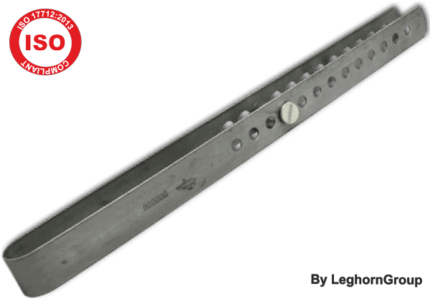

A) BLOCK BAR is a full metal seal bar composed of three parts.

barrier seal block bar how to use

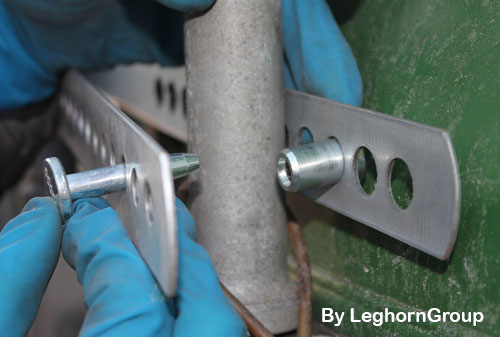

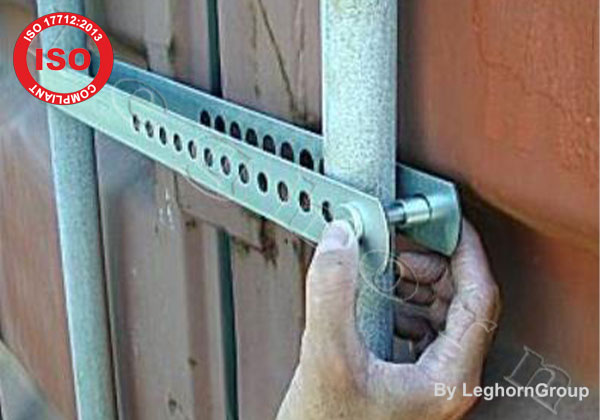

B) After placing the BLOCK BAR between the central bars of the container, the two separate parts of the locking system need to be inserted into two facing seal holes, in a symmetrical manner. By pressing with your fingers you get the permanent locking of the seal pins.

barrier seal block bar how to use

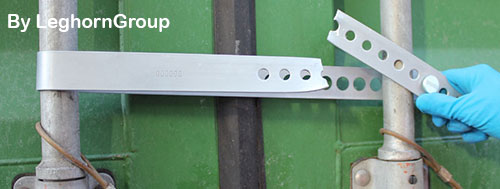

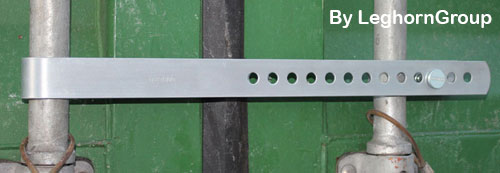

C) From now on the BLOCK BAR is closed and the the container is sealed.

barrier seal block bar how to use

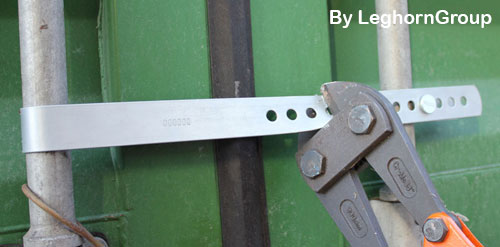

D) To remove the BLOCK BAR from the container bars, you have to use strong shears.

barrier seal block bar how to use

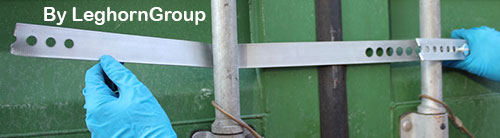

E) It is advisable to break the seal in the center, to be able to remove it more easily.

barrier seal block bar how to use

barrier seal block bar how to use

Video

Certificates

certificates iconCertificate SGS


certificates iconDayton T.Brown ISO 17712


certificates iconDayton T.Brown ISO 17712
