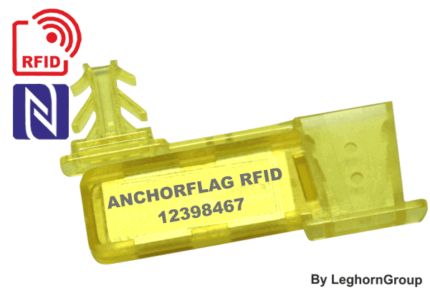

wire security plastic seal rfid anchorflag

UHF/HF/NFC RFID Meter seal ANCHORFLAG

Wire seal embedding UHF, HF or NFC tag for automatic identification function

Specifications and design are subject to change without any notice or obligation from the manufacturer.

Description

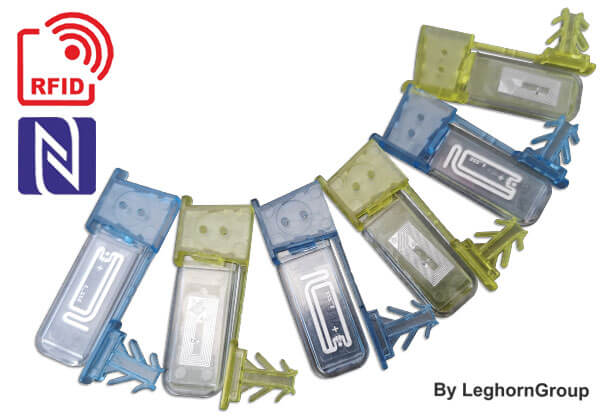

ANCHORFLAG RFID meter seal from LeghornGroup is made of plastic material with high mechanical resistance.

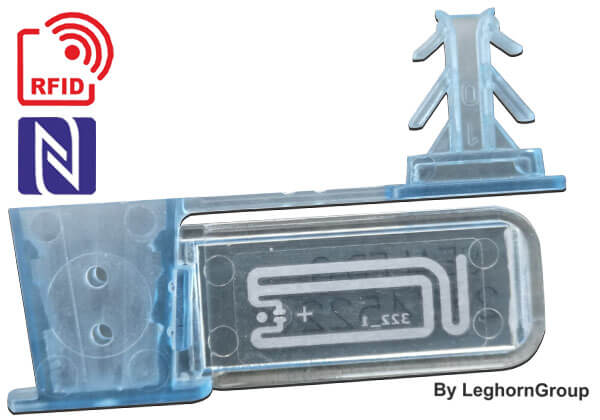

The transparent plastic allows a visual check of the closing mechanism of this seal for meters. Like all RFID tags, this seal for meters also has a unique code that is not clonable and not accessible since the chip is part of the plastic body.

Suitable for:

Water meters
Gas meters
Electrical meters

UHF
– RF protocol: EPC Class 1 Gen2 – ISO/IEC 18000-6C
– Integrated Circuit(IC): IMPINJ Monza 3; Read/Write
– Memory: EEPROM
– Operating Frequency: 860 – 960 MHz – UHF Global
– Protection: IP66
– Operating temp: -20°C to +80°C
– Storage temp: -20°C to +80°C
– Tag dimension: 12×30 mm
– Resistance harsh factory environment
– Reading distance: Typical reading with handheld reader: 5 – 15 cm

TECHNICAL DRAWING

MATERIAL
Polycarbonate
Polystirene

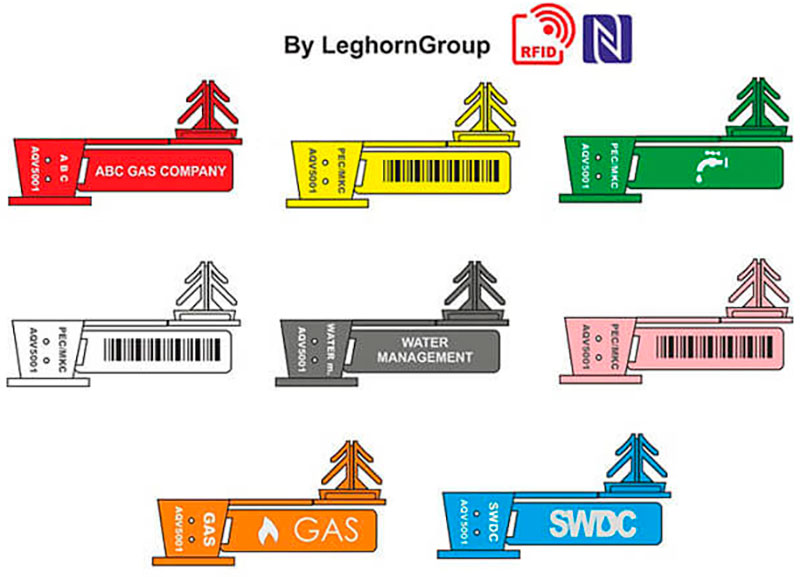

COLORS & CUSTOMIZATIONS

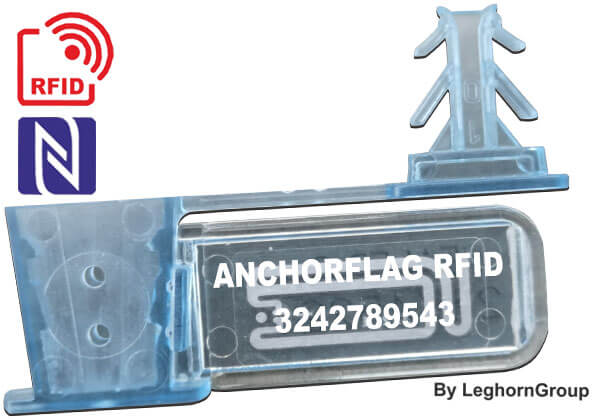

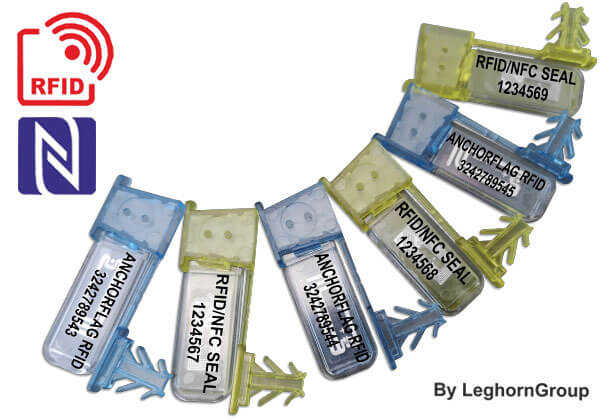

MARKING OPTIONS

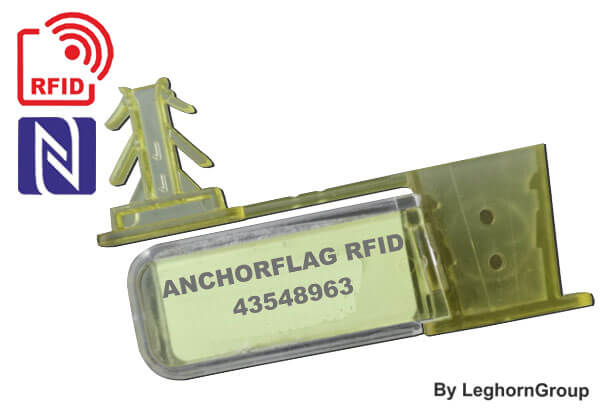

– LASER PRINT
– Sequenced numbering up to 15 digits
– Customised up to 20 characters on one line
– Logos available upon request
– For special orders, logo printing in relief

PACKAGING
4.000 seals per carton
carton size: 56×24×46 cm
carton weigth: 12 kg

How to use

A) Insert the wire in the holes on the seals body.
B) Push the “anchor” part in the hole.
C) Press with the fingers till the seal is really closed. If it clicks by closing the safe closure is guaranteed.
